Advanced multi-level structures and high-density commercial layouts—maximum utility from restricted zoning with balanced public circulation, stair configuration, and private micro-suites.
This portfolio segment manages complex multi-level floor structures and high-density commercial configurations. Drafts extract maximum utility from tight zoning while balancing shared circulation, structural stairs, and private residential or commercial suites.
3D sectionals paired with 2D CAD foundation and multi-unit division drawings.
A high-contrast isometric overview frames a multi-bedroom shell with precise stair landings, lightwells, bathroom layouts, and centralized dining zones. Vertical connections read as navigable 3D paths—not abstract symbols on a flat sheet.

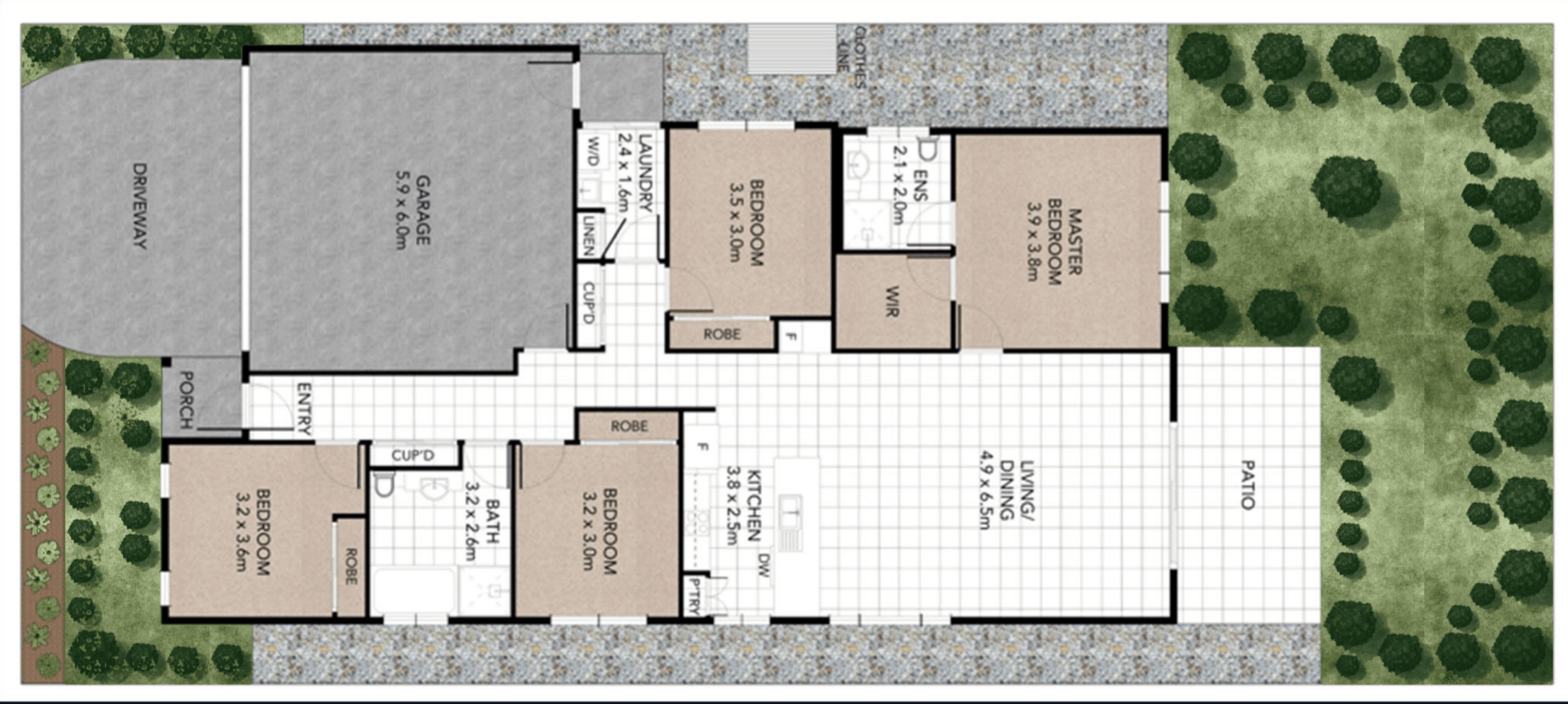

Wood-grain and porcelain-tile overlays define room separations instantly. Bedroom sets, dining tables, and lounge zones become readable for clients who do not read linework—without sacrificing underlying dimensional control.

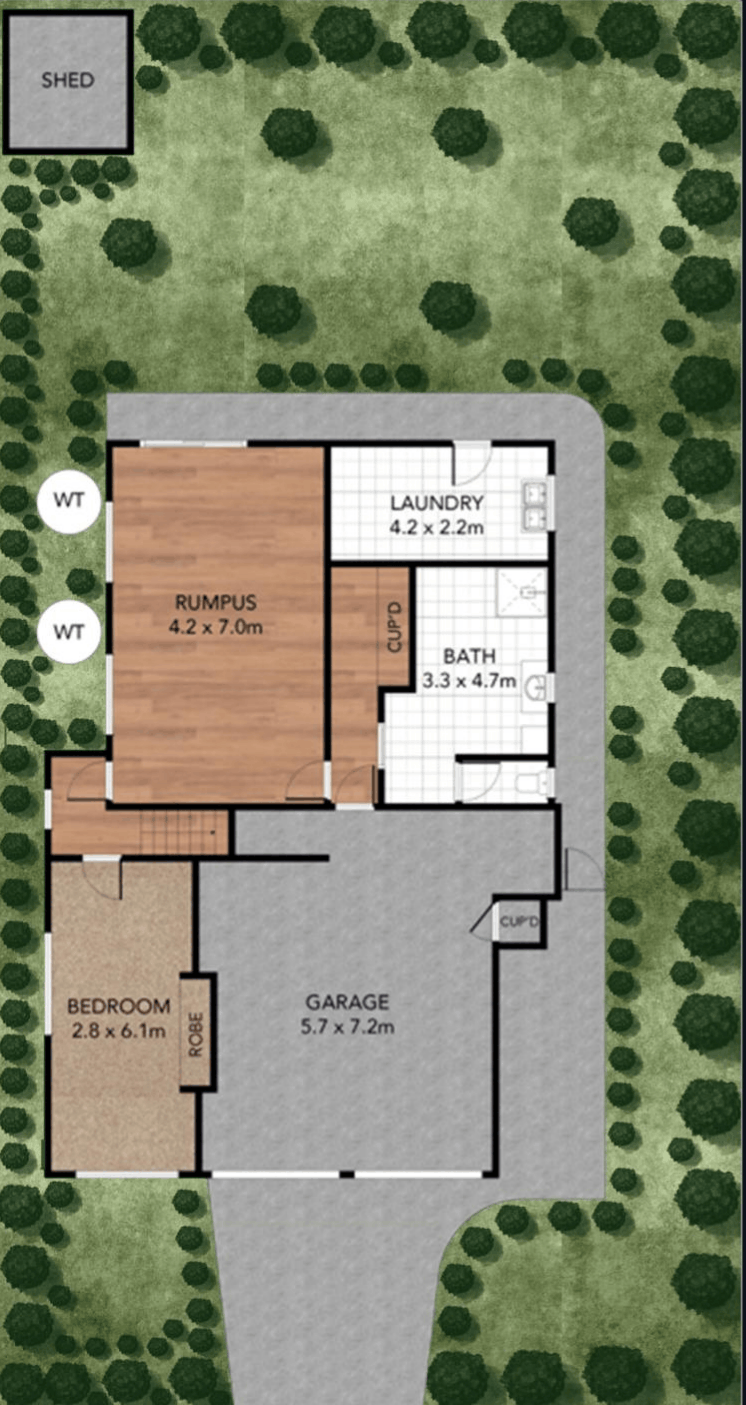

Bold black boundary walls emphasize optimization: door clearance paths, kitchen counter lengths, and micro-suite proportions pop against a neutral field—ideal for portfolio cards and quick web comprehension.

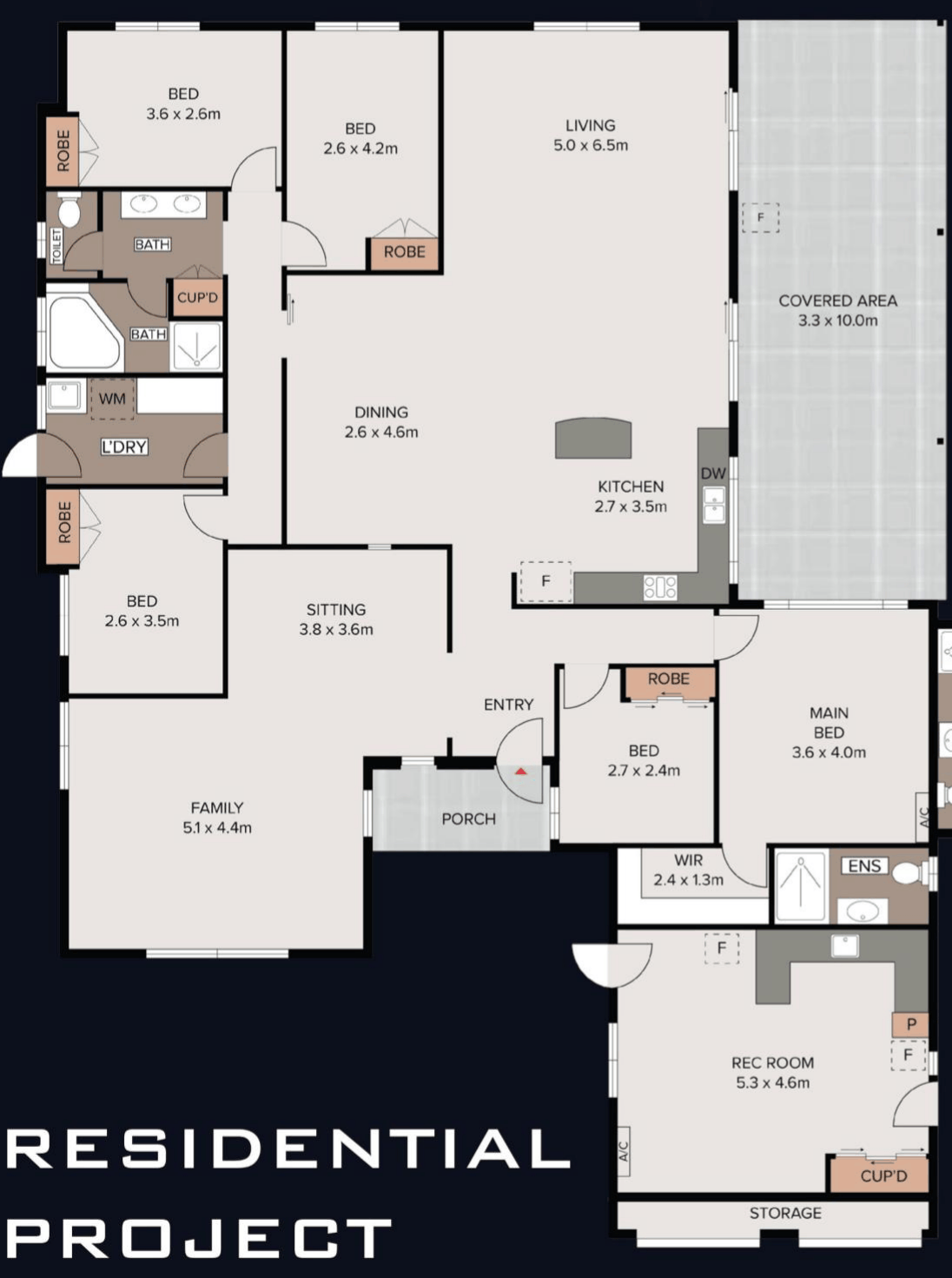

Sharp black-and-white vectors map masonry thicknesses, door frames, step vectors, and window punctures. Adjacent multi-unit divisions show shared vertical plumbing shafts and partition walls to minimize riser runs and maintenance complexity.
High-contrast bounding walls establish hierarchy on screen. Centralized stair cores optimize inter-story transit without sacrificing area. Wet-zone clustering groups kitchens and baths on shared plumbing backdrops. Circulation keeps standardized three-foot buffers at stairs and entries.
Split-level stairs confuse clients on flat vectors—3D dollhouse stair sections show landing heights and door drops clearly. Portfolio pages risk monotony; alternating raw CAD linework with textural 3D presentation proves both engineering depth and visualization craft.
Vectors are authored in AutoCAD and BIM platforms for wall, threshold, and partition precision. Presentation exports use SketchUp Pro with geometric styling to isolate interiors on light-grey digital backdrops for clean web display.
We coordinate stairs, cores, and suites in synchronized 2D and 3D packages for commercial and stacked residential programs. Share your zoning envelope—we will map levels clients can understand.
